165-505-102

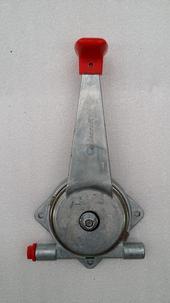

165-505-102 UNIDRUM CONTROL LEVER

Unidrum Lever, Industrial Push-Pull, and Pull-Only Hand Control.
A control head designed primarily for hand throttle applications on commercial and industrial vehicles, and also suitable for many other uses. Compact and efficient for imparting light-to-medium pull-only or push-pull loads through flexible conduits and inner-members. Unidrum controls hold and operate up to 26lb push-pull or pull-only output loads. Mechanical advantage at knob is 5 to 1. There is a self locking nut for operator adjustment of friction setting. The adjustable stop plates allow 10 degree (3/15″ linear output)incremental travel adjustment. Two inches of cable travel requires approximately 90 degree lever travel. Three inches of cable requires approximately 135 degree lever travel. The lever position is adjustable in 60 degree increments to provide optimum operating range. Optional cable entry offers four mountings/directions of operation alternatives.
